Product Construction

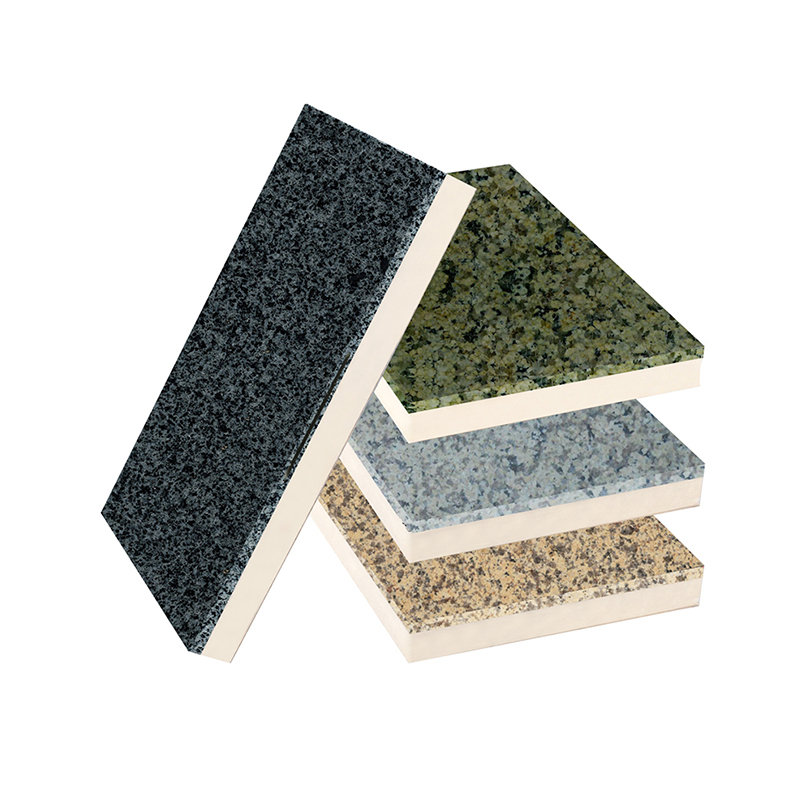

Taken by PUB· The S-I board is the base material, and the insulation and decoration integrated board of the single-sided composite thin stone surface layer is used.
The exterior wall is decorated with a stone curtain wall with high requirements (replacing the dry-hung stone curtain wall).
400x600 600x600
Insulation thickness: 20-80
The thickness of the thin stone slab is 10-12, and the supply and demand of the thin stone type are agreed upon.

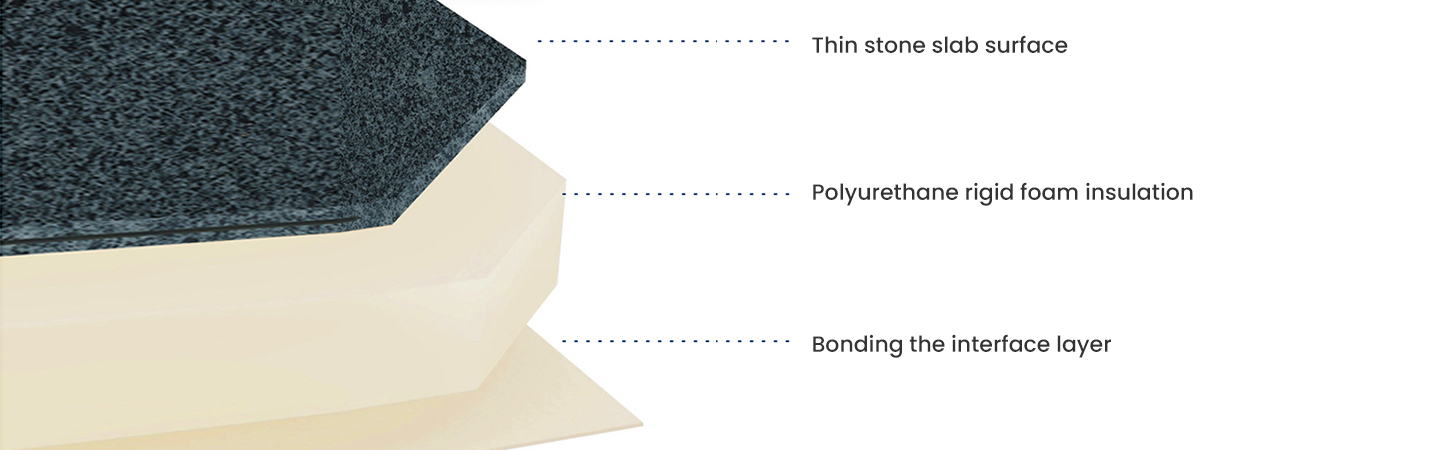

Natural granite decorative layer to realize the integration of thermal insulation and decoration;
No keel pasting and anchoring construction technology, eliminating the construction of keel frame and additional insulation layer, and shortening the work
period, reduce the cost in one fell swoop;
The use of thin granite decorative layer not only reduces the load-bearing of the exterior wall, increases the safety factor, but also saves resources;
Make full use of the flame retardant characteristics of polyurethane B1 grade, adopt patented technology factory compounding, and the combustion performance of the system reaches grade A (composite grade A);
The areal density of the product < 35kg/m, which is only 1/2 of the dry-hung stone curtain wall panel; 60% of the bonding area can provide more than 100 times the self-weight of the bonding strength, and auxiliary anchoring can provide more than 20 times the self-weight of the supplementary strength;
It is recommended to make low-rise exterior walls such as podiums.
Simple construction operations

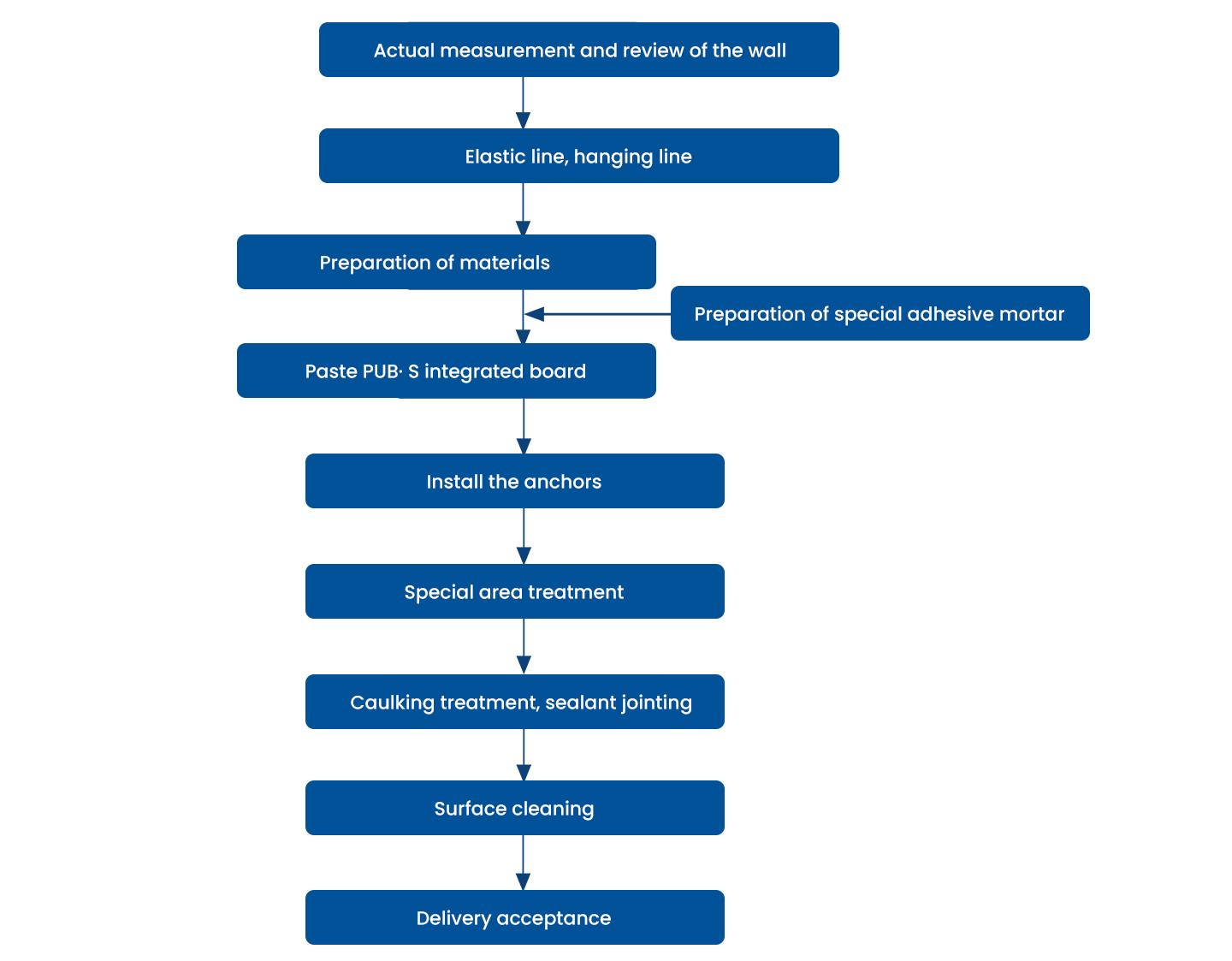

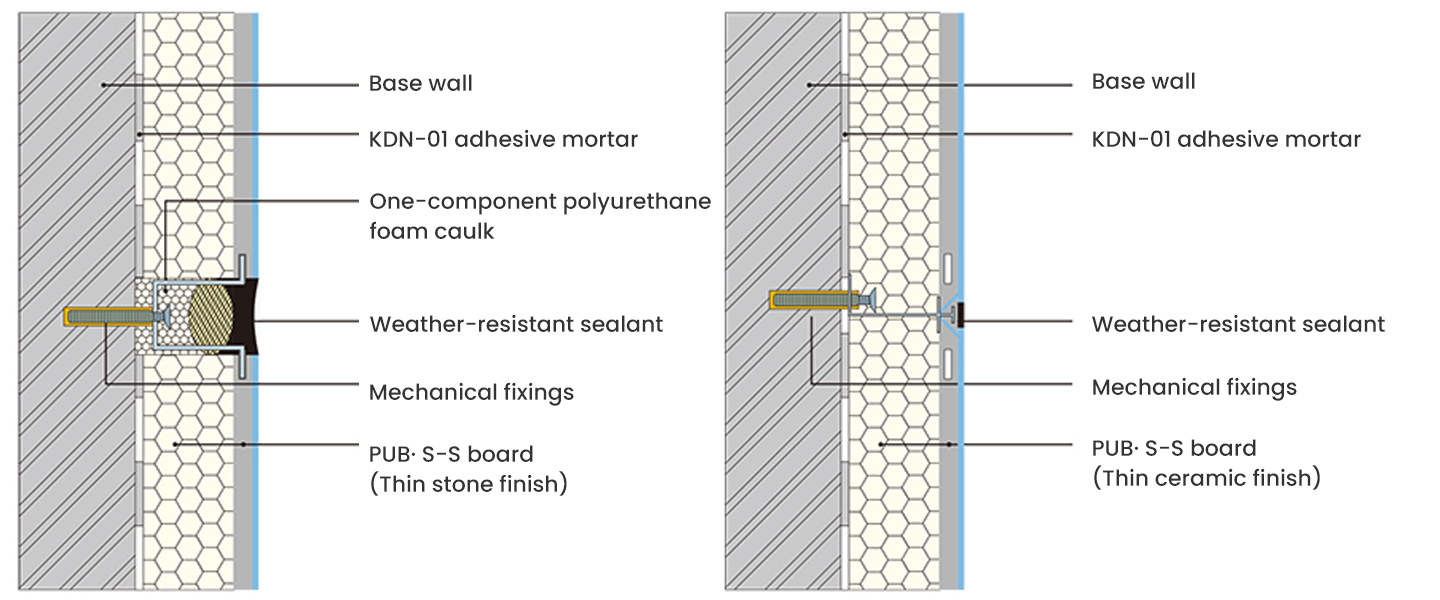

The pasting and anchoring construction process, one-time molding, through the node foam filling, weather-resistant sealant treatment, to form a perfect exterior wall insulation decoration system.
Rich decorative effects
According to different needs, choose different finishing layers to create a variety of decoration styles, which is the first choice for high-quality real estate.
Economical cost
Maximize the use of the material's own performance, meet the functional requirements with the most economical raw material consumption, greatly reduce the cost of raw materials and construction costs, and greatly reduce the cost compared with the traditional energy-saving decoration project with the same decorative effect.
Product Construction
Taken by PUB· The S-I board is the base material, and the insulation and decoration integrated board of the single-sided composite thin stone surface layer is used.
The exterior wall is decorated with a stone curtain wall with high requirements (replacing the dry-hung stone curtain wall).
400x600 600x600
Insulation thickness: 20-80
The thickness of the thin stone slab is 10-12, and the supply and demand of the thin stone type are agreed upon.
Natural granite decorative layer to realize the integration of thermal insulation and decoration;
No keel pasting and anchoring construction technology, eliminating the construction of keel frame and additional insulation layer, and shortening the work
period, reduce the cost in one fell swoop;
The use of thin granite decorative layer not only reduces the load-bearing of the exterior wall, increases the safety factor, but also saves resources;
Make full use of the flame retardant characteristics of polyurethane B1 grade, adopt patented technology factory compounding, and the combustion performance of the system reaches grade A (composite grade A);
The areal density of the product < 35kg/m, which is only 1/2 of the dry-hung stone curtain wall panel; 60% of the bonding area can provide more than 100 times the self-weight of the bonding strength, and auxiliary anchoring can provide more than 20 times the self-weight of the supplementary strength;
It is recommended to make low-rise exterior walls such as podiums.
Simple construction operations
The pasting and anchoring construction process, one-time molding, through the node foam filling, weather-resistant sealant treatment, to form a perfect exterior wall insulation decoration system.
Rich decorative effects
According to different needs, choose different finishing layers to create a variety of decoration styles, which is the first choice for high-quality real estate.
Economical cost
Maximize the use of the material's own performance, meet the functional requirements with the most economical raw material consumption, greatly reduce the cost of raw materials and construction costs, and greatly reduce the cost compared with the traditional energy-saving decoration project with the same decorative effect.
