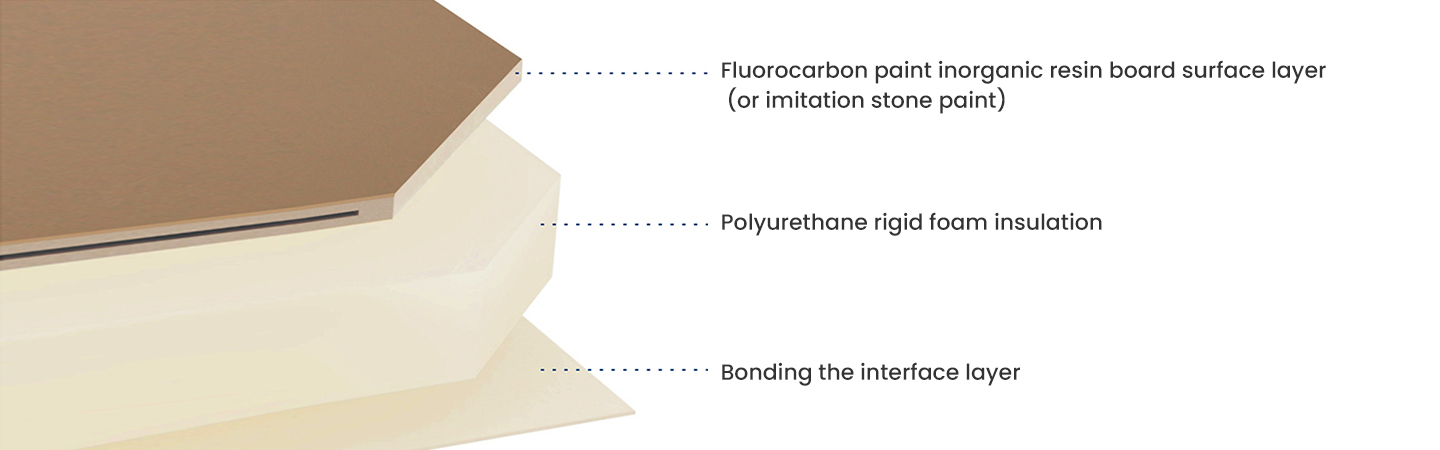

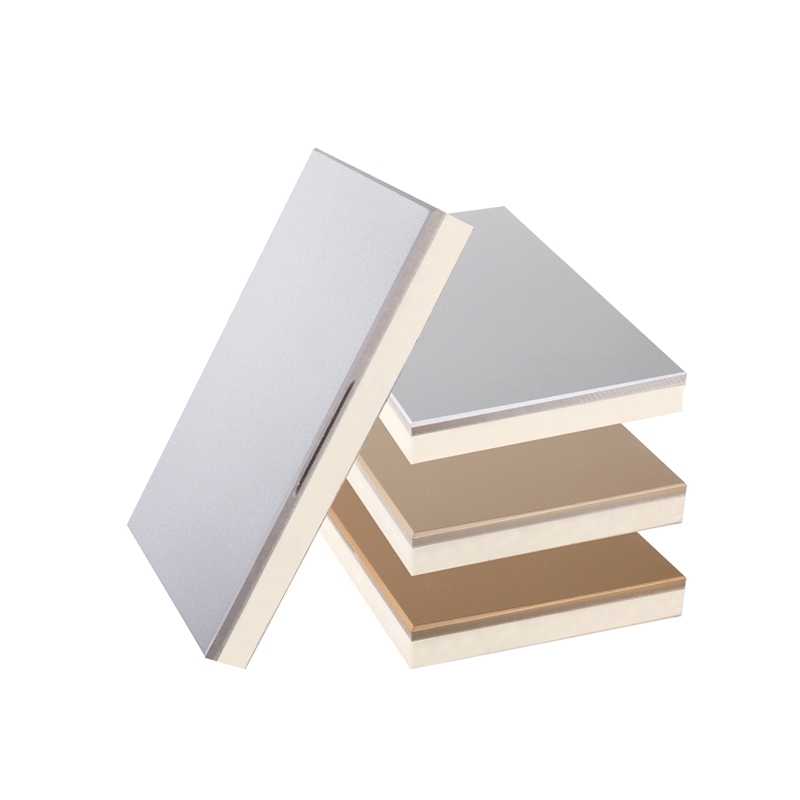

Taken by PUB·S-1 board is the base material, and the surface layer of the single-sided composite fluorocarbon paint or imitation stone paint inorganic resin board (cement fiber pressure board) is an integrated board for insulation and decoration.
Exterior wall decoration with high requirements of building external insulation projects or existing building renovation projects with strict requirements for construction period (imitation fluorocarbon paint metal curtain wall or imitation stone curtain wall).
400x600 600x600 600x800 600x1200
Insulation thickness: 20-80
The thickness of the inorganic resin board is 8-10, and the color of the fluorocarbon paint is agreed upon by both parties.
The surface density of the inorganic resin board of the finishing layer ≤ 18kg/㎡, and the backing cloth reinforces the bonding interface layer;

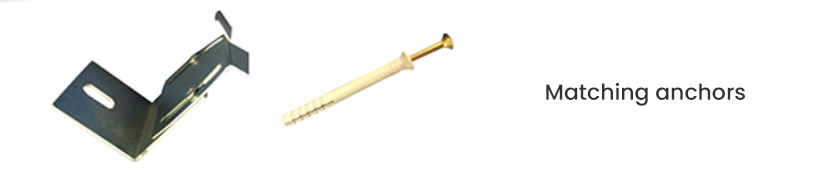

The pasting and anchoring construction technology is adopted, the construction is simple, safe and reliable, and the bonding strength alone can provide more than 20 times the shear safety factor;
The finishing layer is coated with excellent fluorocarbon metal paint or imitation stone paint, which can ensure the long-term luxury decoration effect of the building
The price has obvious price advantages compared with J-shaped plates, and it is a high-quality and low-cost product for brand real estate or public office buildings to improve the façade grade;
Make full use of the flame retardant characteristics of polyurethane B1 grade, adopt patented technology for factory compounding, and the combustion performance of the system reaches grade A (composite A2 grade).
Simple construction operations

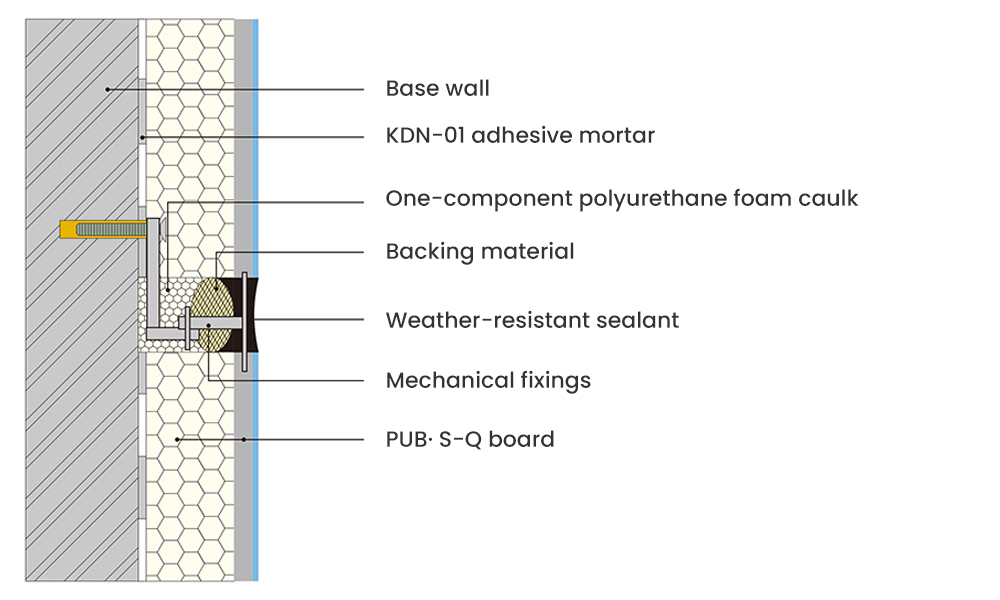

The pasting and anchoring construction process, one-time molding, through the node foam filling, weather-resistant sealant treatment, to form a perfect exterior wall insulation decoration system.
Rich decorative effects
According to different needs, choose different finishing layers (fluorocarbon metal paint, imitation stone paint, etc.) to create a variety of decoration styles is one of the rare solutions to improve the taste of real estate.
Economical cost
Maximize the use of the material's own performance, meet the functional requirements with the most economical raw material consumption, greatly reduce the cost of raw materials and construction costs, and greatly reduce the cost compared with the traditional energy-saving decoration project with the same decorative effect.

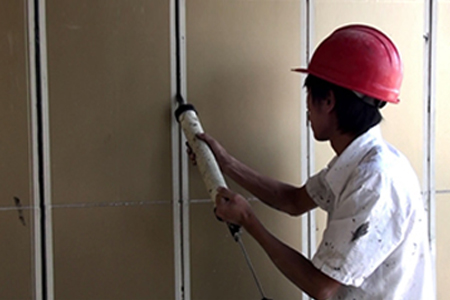

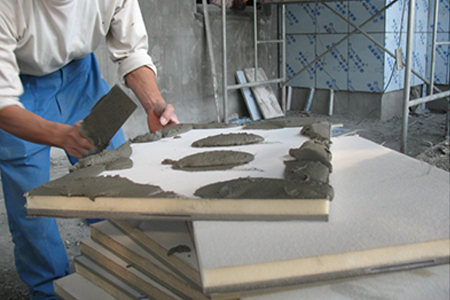

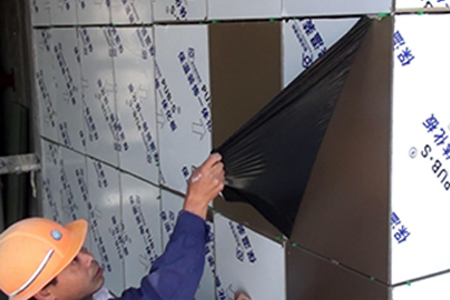

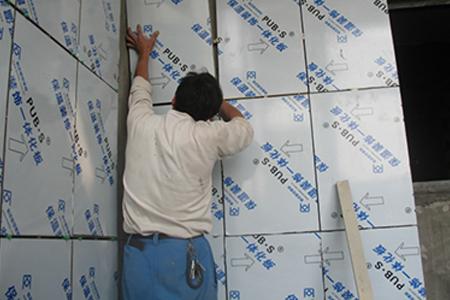

 Peel off the film |  Paste the board on the wall |  Integrated plate sizing |  Gluing |
Taken by PUB·S-1 board is the base material, and the surface layer of the single-sided composite fluorocarbon paint or imitation stone paint inorganic resin board (cement fiber pressure board) is an integrated board for insulation and decoration.
Exterior wall decoration with high requirements of building external insulation projects or existing building renovation projects with strict requirements for construction period (imitation fluorocarbon paint metal curtain wall or imitation stone curtain wall).
400x600 600x600 600x800 600x1200
Insulation thickness: 20-80
The thickness of the inorganic resin board is 8-10, and the color of the fluorocarbon paint is agreed upon by both parties.
The surface density of the inorganic resin board of the finishing layer ≤ 18kg/㎡, and the backing cloth reinforces the bonding interface layer;
The pasting and anchoring construction technology is adopted, the construction is simple, safe and reliable, and the bonding strength alone can provide more than 20 times the shear safety factor;
The finishing layer is coated with excellent fluorocarbon metal paint or imitation stone paint, which can ensure the long-term luxury decoration effect of the building
The price has obvious price advantages compared with J-shaped plates, and it is a high-quality and low-cost product for brand real estate or public office buildings to improve the façade grade;
Make full use of the flame retardant characteristics of polyurethane B1 grade, adopt patented technology for factory compounding, and the combustion performance of the system reaches grade A (composite A2 grade).
Simple construction operations
The pasting and anchoring construction process, one-time molding, through the node foam filling, weather-resistant sealant treatment, to form a perfect exterior wall insulation decoration system.
Rich decorative effects
According to different needs, choose different finishing layers (fluorocarbon metal paint, imitation stone paint, etc.) to create a variety of decoration styles is one of the rare solutions to improve the taste of real estate.
Economical cost
Maximize the use of the material's own performance, meet the functional requirements with the most economical raw material consumption, greatly reduce the cost of raw materials and construction costs, and greatly reduce the cost compared with the traditional energy-saving decoration project with the same decorative effect.
Peel off the film | Paste the board on the wall | Integrated plate sizing | Gluing |
