| Quantity: | |
|---|---|

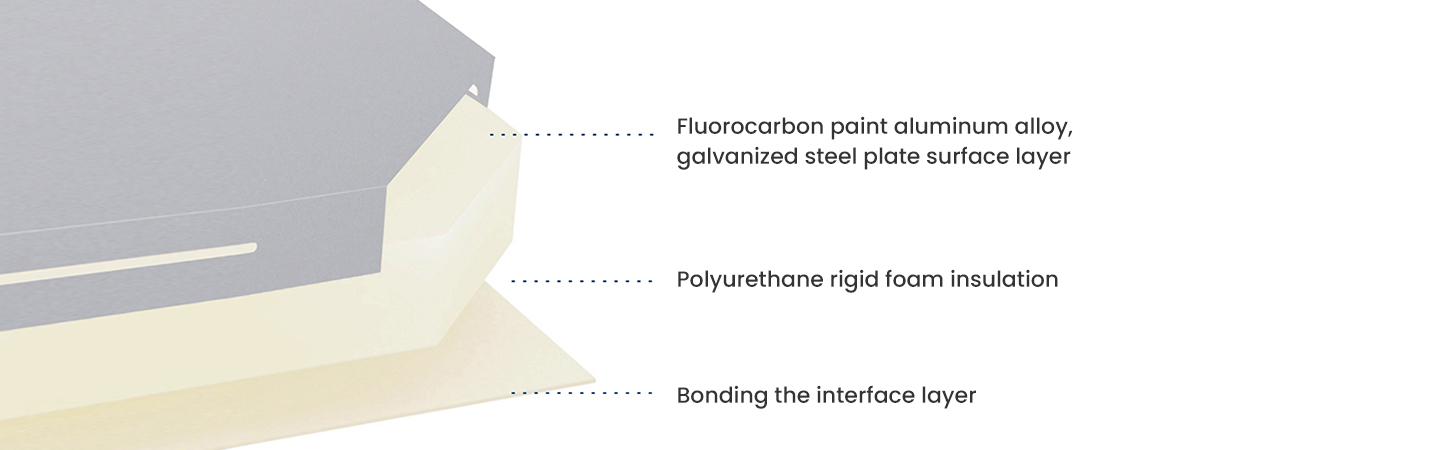

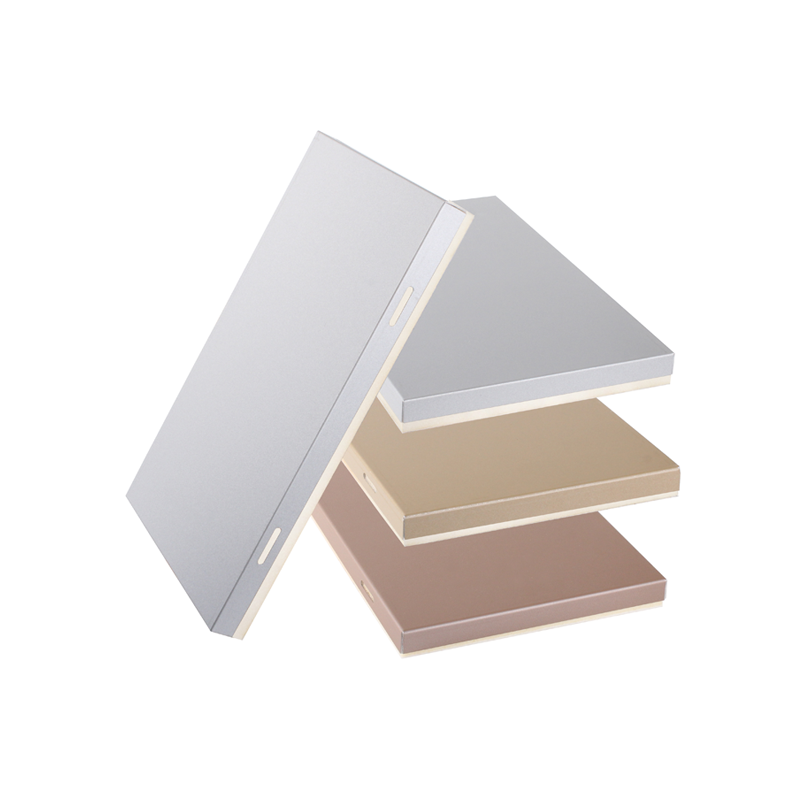

Taken by PUB· The S-1 board is the base material, and the single-sided composite fluorocarbon paint aluminum alloy plate or galvanized steel plate is an integrated board for thermal insulation and decoration.
The exterior wall is decorated with a high demand for imitation metal stone curtain wall engineering (instead of dry-hung metal or stone curtain wall).
400x600 600x600 600x800600x1200
Insulation thickness: 20-80
Pay equal attention to thermal insulation and decoration to realize the integration of thermal insulation and decoration;

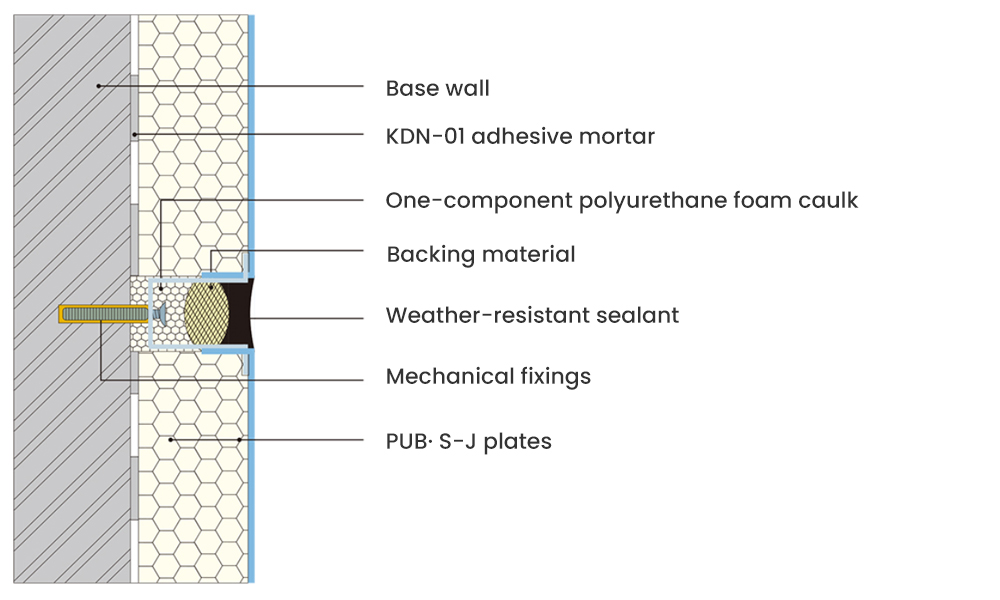

Use paste and anchor installation process to avoid keel, simplify the process, shorten the construction period and reduce the cost;
After the system is formed, the decorative effect is equivalent to that of metal or stone curtain wall, which is noble and luxurious, which is greatly improved the taste of the building;
Make full use of the flame retardant characteristics of polyurethane B1 grade, adopt patented technology factory compounding, and the combustion performance of the system reaches grade A (composite grade A);
System structure safety: 60% of the effective bonding area, which can provide more than 200 times the pull-out force of the product's own weight, and auxiliary anchoring can also provide 50 times the supplementary strength of its own weight.
The decorative effect is equivalent to that of aluminum veneer and aluminum-plastic panel curtain wall, and the energy-saving and decorative functions are realized simultaneously.
The construction process of pasting and anchoring is simple, and the installation is fast and reliable.
Eliminate the installation of keel frame, save cost and save resources, and it is the most ideal external wall insulation and decoration system to improve architectural taste and reasonably control construction costs.

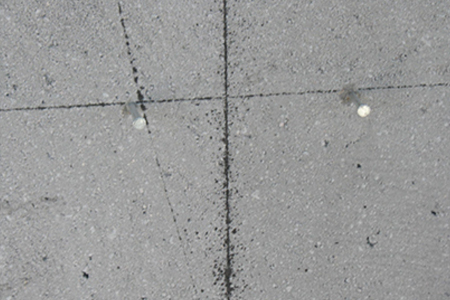

Split the springline |

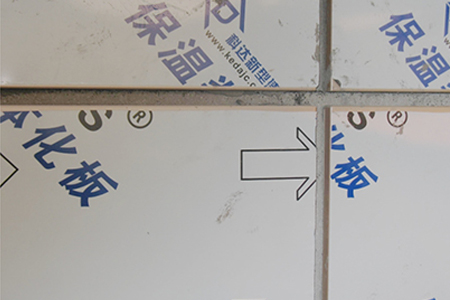

Stickers |

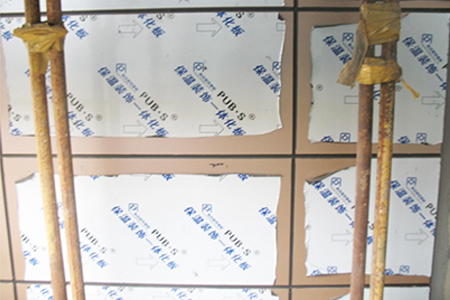

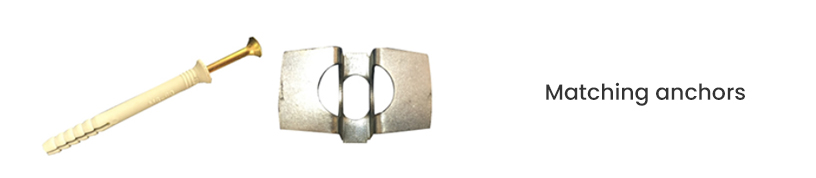

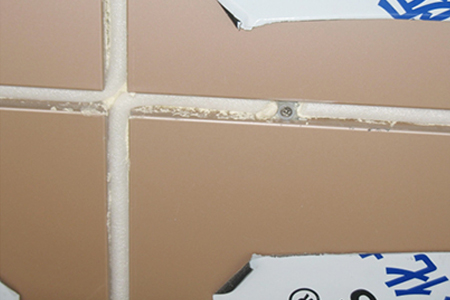

Anchoring |  Hit the sealant |
Taken by PUB· The S-1 board is the base material, and the single-sided composite fluorocarbon paint aluminum alloy plate or galvanized steel plate is an integrated board for thermal insulation and decoration.
The exterior wall is decorated with a high demand for imitation metal stone curtain wall engineering (instead of dry-hung metal or stone curtain wall).
400x600 600x600 600x800600x1200
Insulation thickness: 20-80
Pay equal attention to thermal insulation and decoration to realize the integration of thermal insulation and decoration;
Use paste and anchor installation process to avoid keel, simplify the process, shorten the construction period and reduce the cost;
After the system is formed, the decorative effect is equivalent to that of metal or stone curtain wall, which is noble and luxurious, which is greatly improved the taste of the building;
Make full use of the flame retardant characteristics of polyurethane B1 grade, adopt patented technology factory compounding, and the combustion performance of the system reaches grade A (composite grade A);
System structure safety: 60% of the effective bonding area, which can provide more than 200 times the pull-out force of the product's own weight, and auxiliary anchoring can also provide 50 times the supplementary strength of its own weight.
The decorative effect is equivalent to that of aluminum veneer and aluminum-plastic panel curtain wall, and the energy-saving and decorative functions are realized simultaneously.
The construction process of pasting and anchoring is simple, and the installation is fast and reliable.
Eliminate the installation of keel frame, save cost and save resources, and it is the most ideal external wall insulation and decoration system to improve architectural taste and reasonably control construction costs.
Split the springline |
Stickers |
Anchoring | Hit the sealant |
